The new NEMA 23 Stepper Motors from Sanyo Denki were developed with high torque, low noise, and energy saving in mind

SANMOTION F2 Stepper Motor Series - 56 mm sq. 2-phase stepper motors

May 25, 2021

SANYO DENKI CO., LTD. has developed the SANMOTION F2 56 mm sq. 2-phase stepping motors, expanding the product lineup of the series.
The new models achieve best-in-class⁽¹⁾ torque performance and high efficiency, therefore improving machine speed and contributing to energy savings.

Features

1. High Torque

Compared to our conventional model, torque performance has improved by approximately 40%.⁽²⁾
This contributes to shortening the positioning time and machine cycle time.

2. Low Noise

These motors have noise levels approximately 3 dB lower than the current model, reducing the noise level of machines.⁽²⁾

3. Energy Saving

Motor efficiency has been improved by approximately 3% compared to the current model.⁽²⁾
This contributes to reducing power consumption of machines and the motor’s heat dissipation.

(1) Based on our own research as of May 25, 2021, conducted among equally sized industrial 2-phase stepping motors on the market.

(2) A comparison between our current model 103H7123-5840 and new model SM2562C30B41.

Motor Specifications

Unipolar winding, connector type

Model no.		Flange size × Motor length [mm]	Holding torque at 2-phase excitation [N·m]	Rated current [A/phase]	Mass [kg]
Single shaft	Dual shaft	Flange size × Motor length [mm]	Holding torque at 2-phase excitation [N·m]	Rated current [A/phase]	Mass [kg]
SM2561C10U41	SM2561C10U11	56 x 41.8	0.53	1	0.49
SM2561C20U41	SM2561C20U11	56 x 41.8	0.53	2	0.49
SM2561C30U41	SM2561C30U11	56 x 41.8	0.53	3	0.49
SM2562C10U41	SM2562C10U11	56 x 53.8	1.1	1	0.69
SM2562C20U41	SM2562C20U11	56 x 53.8	1.1	2	0.69
SM2562C30U41	SM2562C30U11	56 x 53.8	1.1	3	0.69
SM2563C10U41	SM2563C10U11	56 x 75.8	1.7	1	1.1
SM2563C20U41	SM2563C20U11	56 x 75.8	1.7	2	1.1
SM2563C30U41	SM2563C30U11	56 x 75.8	1.7	3	1.1
SM2564C10U41	SM2564C10U11	56 x 85.8	1.75	1	1.27
SM2564C20U41	SM2564C20U11	56 x 85.8	1.75	2	1.27
SM2564C30U41	SM2564C30U11	56 x 85.8	1.75	3	1.27

Bipolar winding, connector type

Model no.		Flange size × Motor length [mm]	Holding torque at 2-phase excitation [N·m]	Rated current [A/phase]	Mass [kg]
Single shaft	Dual shaft	Flange size × Motor length [mm]	Holding torque at 2-phase excitation [N·m]	Rated current [A/phase]	Mass [kg]
SM2561C10B41	SM2561C10B11	56 x 41.8	0.75	1	0.49
SM2561C20B41	SM2561C20B11	56 x 41.8	0.75	2	0.49
SM2561C30B41	SM2561C30B11	56 x 41.8	0.75	3	0.49
SM2561C40B41	SM2561C40B11	56 x 41.8	0.75	4	0.49
SM2561C60B41	SM2561C60B11	56 x 41.8	0.75	6	0.49
SM2562C10B41	SM2562C10B11	56 x 53.8	1.4	1	0.69
SM2562C20B41	SM2562C20B11	56 x 53.8	1.4	2	0.69
SM2562C30B41	SM2562C30B11	56 x 53.8	1.4	3	0.69
SM2562C40B41	SM2562C40B11	56 x 53.8	1.4	4	0.69
SM2562C60B41	SM2562C60B11	56 x 53.8	1.4	6	0.69
SM2563C10B41	SM2563C10B11	56 x 75.8	2.35	1	1.1
SM2563C20B41	SM2563C20B11	56 x 75.8	2.35	2	1.1
SM2563C30B41	SM2563C30B11	56 x 75.8	2.35	3	1.1
SM2563C40B41	SM2563C40B11	56 x 75.8	2.35	4	1.1
SM2563C60B41	SM2563C60B11	56 x 75.8	2.35	6	1.1
SM2564C10B41	SM2564C10B11	56 x 85.8	2.5	1	1.27
SM2564C20B41	SM2564C20B11	56 x 85.8	2.5	2	1.27
SM2564C30B41	SM2564C30B11	56 x 85.8	2.5	3	1.27
SM2564C40B41	SM2564C40B11	56 x 85.8	2.5	4	1.27
SM2564C60B41	SM2564C60B11	56 x 85.8	2.5	6	1.27

New NEMA23 Speed/Torque curve

Torque is improved in all speed ranges, and it is more than 40% higher in speed range that is most frequently used.

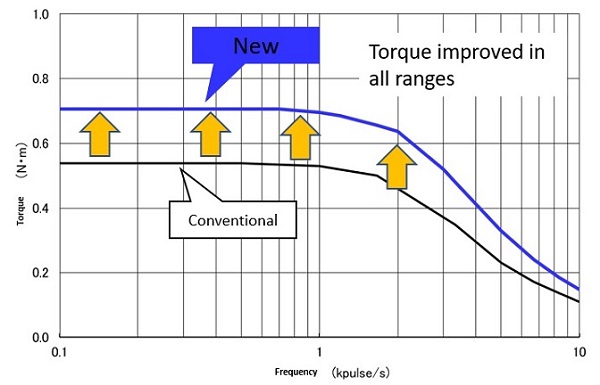

■SM2561 (41.8 mm) Stepper Motor

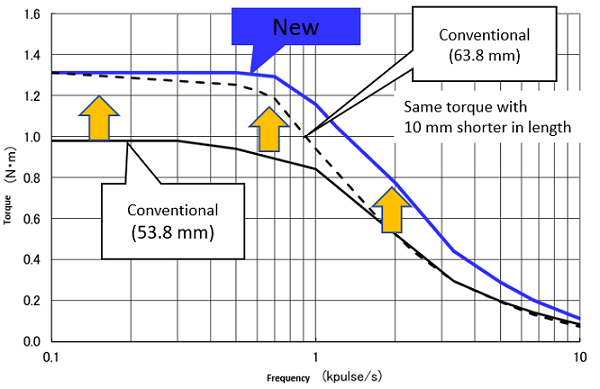

■SM2562 (53.8 mm) Stepper Motor

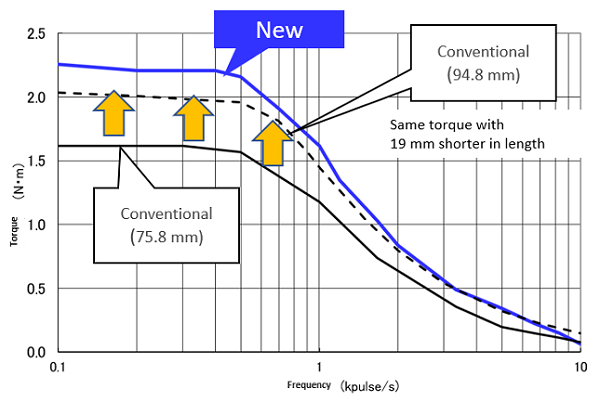

■SM2563 (75.8 mm) Stepper Motor

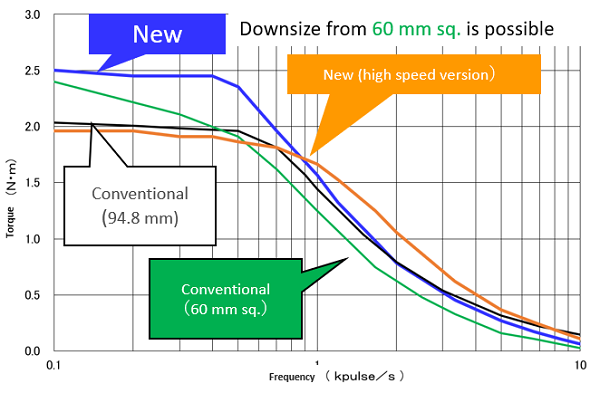

■SM2564 (85.8 mm) Stepper Motor

Custom Options for NEMA 23 Stepper Motors

Options such as gearbox, encoder, brakes are available for customizations.

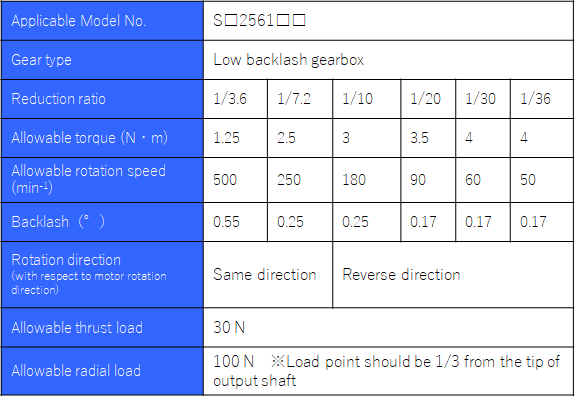

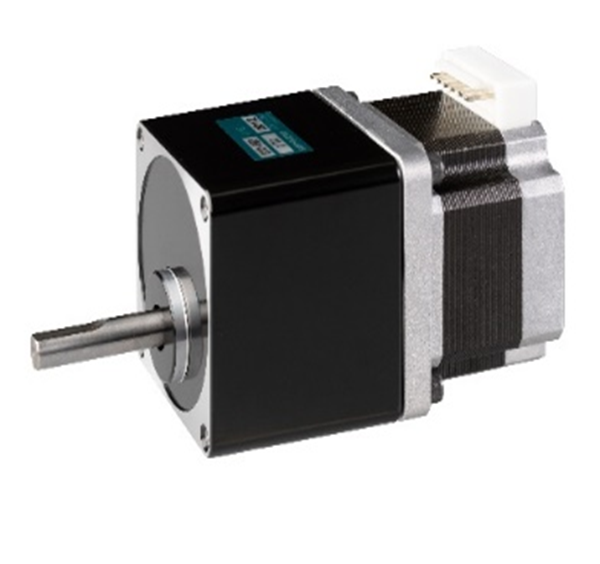

Custom NEMA23 Stepper Low backlash gearbox

Low backlash gearbox

Custom NEMA23 Stepper Low backlash gearbox details

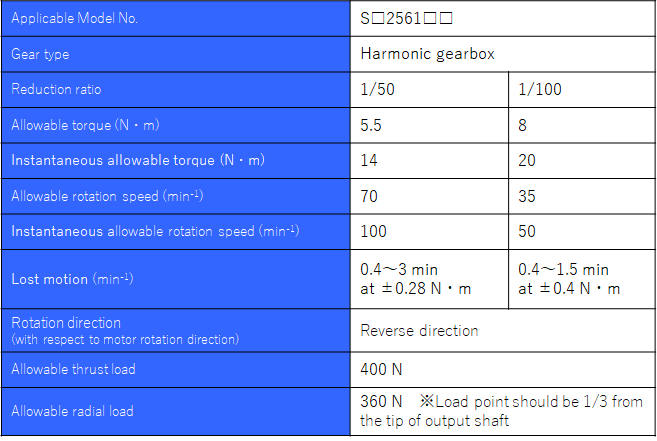

Custom NEMA23 Stepper Harmonic gearbox

Harmonic gearbox

Custom NEMA23 Stepper harmonic gearbox details

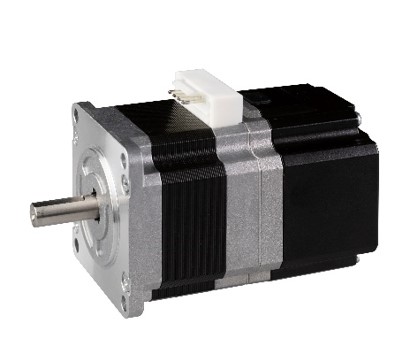

Custom NEMA23 Stepper Brake

Brake Customization

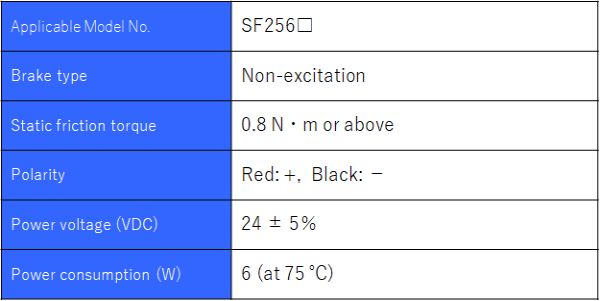

Custom NEMA23 Stepper brake details

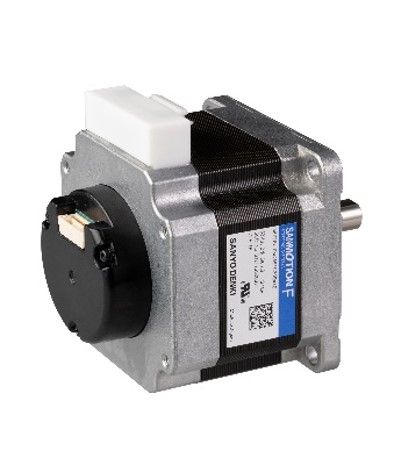

Custom NEMA23 Stepper Encoder

Encoder

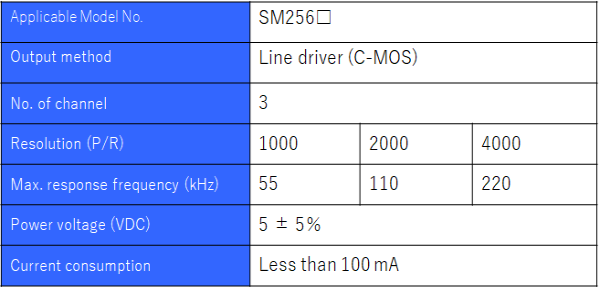

Custom NEMA23 Stepper encoder details

Applications

Medical devices, industrial equipment, semiconductor manufacturing equipment, conveying machines, and index table driving

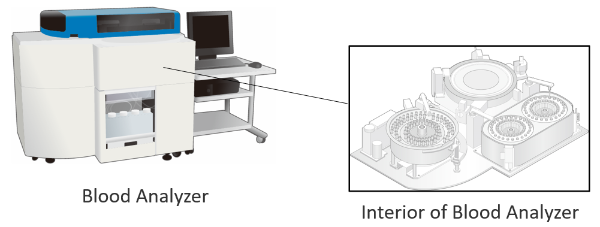

Blood Analyzer Application Example

F2 Stepper motor for medical device blood analyzer

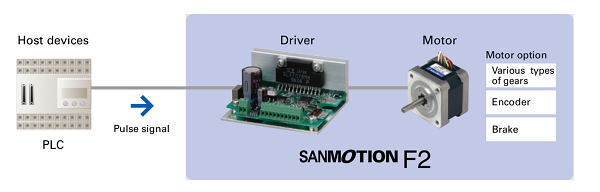

System Configuration

Stepper Motor / Driver Combinations

stepper motor and driver combination chart

Resources

Resource	Link	Format
Catalog	NEMA23 Stepper Motor Catalog	PDF
Product Search	Advanced Specification Search	HTML
Stepper Motors compatible to available drivers	Advanced Specification Search	HTML
Unipolar Drivers	Advanced Specification Search	HTML
Bipolar Drivers	Advanced Specification Search	HTML

Email Us

Release Date

May 26, 2021

Price

Open

Note: The information stated in this release is current as of May 25, 2021.
