Product News

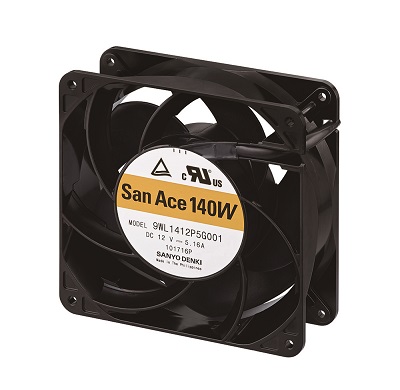

SANYO DENKI Develops 140 × 140 × 51 mm Splash Proof Fan
With industry-leading service life, airflow, and static pressure

January 10, 2018

SANYO DENKI has developed and launched the San Ace 140W 9WL type 140 × 140 × 51 mm Splash Proof Fan. This fan features the longest service life as well as the highest airflow and static pressure in the industry.(1)
It is suitable for cooling communications equipment, solar inverters, rapid EV charging stations, and digital signage, and the like.
This fan also comes standardly equipped with the PWM control function to externally control the fan speed.
This is the industry's first IP68-rated splash proof fan in this size.(1)

San Ace 140L

Features

1. Long Service Life

This fan achieves an expected life as long as 100,000 hours, which is 1.7 times that of our current model(2).

2. High Airflow and High Static Pressure

This fan delivers a maximum airflow of 318 CFM and maximum static pressure of 2.63 inH2O.(3)
Compared with the current model(2), the maximum airflow has been increased to 1.1 times and maximum static pressure has been increased to 2.7 times.

3. Water and Dust Resistance

Superior IP68-rated(4) water and dust protection ensures stable fan operation even in harsh environments.

4. High Energy Efficiency and Low Noise

Power consumption has been reduced by 35%(5) compared with the current model(2).
The PWM control function enables the external control of fan speed, contributing to the lower noise and higher energy efficiency of devices.

(1) Based on our own research as of January 10, 2018, among equally-sized axial DC fans on the market.

(2) Current model: San Ace 140W 9WB type 140 × 140 × 51 mm Splash Proof Fan (model no. 9WB14☐☐S501).

(3) The values are for 9WL14☐☐P5G001 models, where ☐’s are wildcard characters.

(4) Based on the testing method standardized by International Electrotechnical Commission (IEC) in IEC 60529.

(5) The values are for 9WL14☐☐P5S001 models, where ☐’s are wildcard characters.

Specifications

Dimensions: 140 × 140 × 38 mm Mass: approx. 640 g

Model no. Rated
voltage
Operating voltage
range
Rated
input
Rated speed Max. airflow Max. static
pressure
Sound
pressure level
[V] [V] [W] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)]
9WL1412P5G001 12 10.2 to 13.8 62 7500 9.0 318 655 2.63 69
9WL1412P5S001 22 5000 6.0 212 295 1.18 57
9WL1424P5G001 24 20.4 to 27.6 62 7500 9.0 318 655 2.63 69
9WL1424P5S001 22 5000 6.0 212 295 1.18 57
9WL1448P5G001 48 40.8 to 55.2 62 7500 9.0 318 655 2.63 69
9WL1448P5S001 22 5000 6.0 212 295 1.18 57

Expected life: 100000 hours (L10 life: 90% survival rate for continuous operation in indoor free air at 60℃, rated voltage)

PDF Catalog

English [720KB]

Applications

Communications equipment, solar inverters, rapid EV charging stations, and digital signage

Release Date

January 10, 2018

Price

Open

Safety Precautions

Safety Precautions [PDF:228KB]

Note: The information stated in this release is current as of January 10, 2018.
“ San Ace ” is a trademark of SANYO DENKI CO., LTD.
