SANYO DENKI Develops 140 × 140 × 38 mm Splash Proof Fan
With industry-leading service life, airflow, and static pressure
January 10, 2018

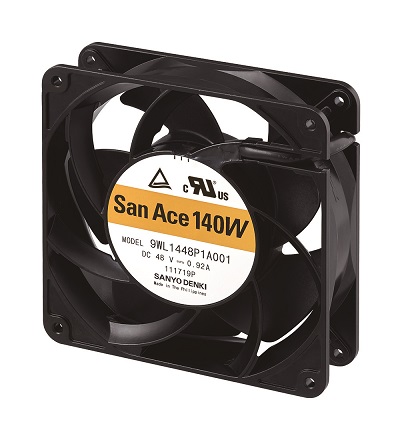

SANYO DENKI CO., LTD. has developed and launched the San Ace 140W 9WL type 140 × 140 × 38 mm Splash Proof Fan. This fan features the longest service life as well as the highest airflow and static pressure in the industry.(1)
It is suitable for cooling communications equipment, solar inverters, rapid EV charging stations, and digital signage, and the like.
This fan also comes standardly equipped with the PWM control function to externally control the fan speed.
This is the industry's first IP68-rated splash proof fan in this size.(1)
1. Long Service Life
This fan delivers a maximum airflow of 8.0 m3/min and maximum static pressure of 516 Pa.(2)
Compared with the current model(3), the maximum airflow has been increased to 1.7 times and maximum static pressure has been increased to 5.2 times.
2. Water and Dust Resistance
Superior IP68-rated(4) water and dust protection ensures stable fan operation even in harsh environments.
3. High Energy Efficiency and Low Noise
Power consumption has been reduced by approximately 18%(5) compared with the current model(3).
The PWM control function enables the external control of fan speed, contributing to the lower noise and higher energy efficiency of devices.
(1) Based on our own research as of January 10, 2018, among equally-sized axial DC fans on the market.
(2) The values are for 9WL14☐☐P1A001 models, where ☐’s are wildcard characters.
(3) Current model: San Ace 140W 9W type 140 × 140 × 38 mm Splash Proof Fan (model no. 109W14☐☐H101-U).
(4) Based on the testing method standardized by International Electrotechnical Commission (IEC) in IEC 60529.
(5) The values are for 9WL14☐☐P1M001 models, where ☐’s are wildcard characters.
Dimensions: 140 × 140 × 38 mm Mass: approx. 740 g
|Rated speed||Max. airflow||Max. static
|9LG1412P1A001||12||10.2 to 13.8||44.64||6900||8.0||282||516||2.07||68|
|9LG1424P1A001||24||20.4 to 27.6||44.64||6900||8.0||282||516||2.07||68|
|9LG1448P1A001||48||40.8 to 55.2||44.16||6900||8.0||282||516||2.07||68|
Expected life: 100000 hours (L10 life: 90% survival rate for continuous operation in indoor free air at 60℃, rated voltage)
Communications equipment, solar inverters, rapid EV charging stations, and digital signage
January 10, 2018
Projected Sales Figures
Initial fiscal year: 5,000 units per month, second fiscal year: 10,000 units per month
Note: The information stated in this release is current as of January 10, 2018.
“ San Ace ” is a trademark of SANYO DENKI CO., LTD.
