Product News

SANYO DENKI Releases
40 × 40 × 56 mm Counter Rotating Fan
Industry’s Highest Static Pressure

July 21, 2017

SANYO DENKI has developed and launched the San Ace 40 9CRH type 40 × 40 × 56 mm Counter Rotating Fan. It features the highest static pressure in the industry.*
It offers ideal cooling solutions for servers, power supplies, telecom/networking devices, and data storage systems.
This fan also has the PWM control function as standard that enables to externally control the rotational speed of the fan.

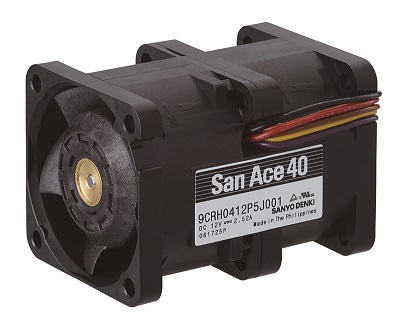

San Ace 40CRH

Features

1. High Static Pressure

The maximum static pressure has increased by 62% compared with our current model**.
It provides effective cooling especially for high density equipment.

2. High Energy Efficiency and Low Noise

Power consumption and noise level have been reduced by approximately 10% and 3 dB(A), respectively, compared with our current model**.
Furthermore, the PWM control function enables the external control of fan speed, contributing to even lower noise and higher energy efficiency of devices.

* Based on our own research as of July 21, 2017, among equally sized axial DC cooling fans in the market.

** Current model: San Ace 40 9CRV type 40 x 40 x 56 mm Counter Rotating Fan, model no. 9CRV0412P5J201.

Specifications

Size: 40 × 40 × 56 mm Mass: Approx. 110 g

Model no. Rated
voltage
Operating
voltage
range
Rated
input
Rated speed Max. airflow Max. static
pressure
Sound
pressure
level
[V] [V] [W] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)]
Inlet Outlet
9CRH0412P5J001 12 10.8 to 12.6 30.24 29500 25500 0.93 32.9 1700 6.83 70

Expected life: 30000 hours (L10: Survival rate: 90% at 60℃, rated voltage, and continuously run in a free air state)

PDF Catalog

English [531 KB]

Applications

Servers, power supplies, telecom/networking devices, and data storage systems

Release Date

July 21, 2017

Price

Open

Safety Precautions

Safety Precautions [PDF:228KB]

*The information stated in this release is current as of July 21, 2017 .
“ San Ace ” is a trademark of SANYO DENKI CO., LTD.
