SANYO DENKI Releases 120 × 120 × 25 mm Low Power Consumption Fan
Industry’s leading energy efficiency and static pressure
January 12, 2017

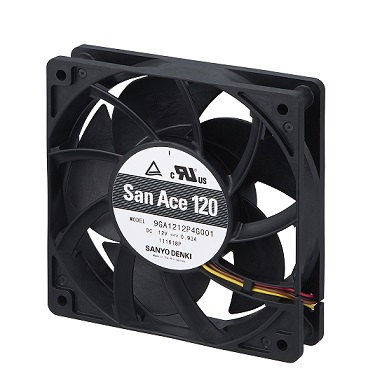

SANYO DENKI has developed and launched the San Ace 120 9GA type 120 × 120 × 25 mm low power consumption fan. It features industry-leading*1 energy efficiency and static pressure.
It is suitable for use in medical equipment, electrical measuring instruments, PV inverters, industrial inverters, LCDs, and arcade amusement machines.
This fan also has the PWM control function as standard that enables to externally control the rotational speed of the fan.
Features
1. Low Power Consumption
The power consumption has decreased by 45% compared with our current model.*2
2. High Static Pressure
The static pressure has increased by 63% compared with our current model.*2
3. Low Noise and High Energy Efficiency
The PWM control function enables the external control of fan speed, contributing to lower noise and higher energy efficiency of devices.
*1 This information is based on our own research as of January 12, 2017, collected among 120 × 120 × 25 mm axial DC cooling fans.
*2 Our current DC fan model 9GV1212P4G01, 120 × 120 × 25 mm "San Ace 120 9GV type".
Specifications
Size: 120 × 120 × 25 mm Mass: Approx. 280 g
With pulse sensor and PWM control function
| Model no. | Rated voltage | Operating voltage range | Rated input | Rated speed | Max. airflow | Max. static pressure | Sound pressure level | ||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9GA1212P4G001 | 12 | 10.2 to 13.8 | 11.16 | 6,400 | 3.8 | 134 | 365 | 1.47 | 57 |
| 9GA1212P4S001 | 7.32 | 5,400 | 3.2 | 113 | 260 | 1.04 | 54 | ||
| 9GA1224P4G001 | 24 | 20.4 to 27.6 | 11.28 | 6,400 | 3.8 | 134 | 365 | 1.47 | 57 |
| 9GA1224P4S001 | 7.44 | 5,400 | 3.2 | 113 | 260 | 1.04 | 54 | ||
| 9GA1248P4G001 | 48 | 40.8 to 53 | 11.52 | 6,400 | 3.8 | 134 | 365 | 1.47 | 57 |
| 9GA1248P4S001 | 7.68 | 5,400 | 3.2 | 113 | 260 | 1.04 | 54 | ||
Expected life: 40,000 hours (L10: Survival rate: 90% at 60℃, rated voltage, and continuously run in a free air state)
With pulse sensor
| Model no. | Rated voltage | Operating voltage range | Rated input | Rated speed | Max. airflow | Max. static pressure | Sound pressure level | ||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9GA1212G4001 | 12 | 7 to 13.8 | 11.16 | 6,400 | 3.8 | 134 | 365 | 1.47 | 57 |
| 9GA1212S4001 | 7.32 | 5,400 | 3.2 | 113 | 260 | 1.04 | 54 | ||
| 9GA1224G4001 | 24 | 14 to 27.6 | 11.28 | 6,400 | 3.8 | 134 | 365 | 1.47 | 57 |
| 9GA1224S4001 | 7.44 | 5,400 | 3.2 | 113 | 260 | 1.04 | 54 | ||
| 9GA1248G4001 | 48 | 36 to 53 | 11.52 | 6,400 | 3.8 | 134 | 365 | 1.47 | 57 |
| 9GA1248S4001 | 7.68 | 5,400 | 3.2 | 113 | 260 | 1.04 | 54 | ||
Expected life: 40,000 hours (L10: Survival rate: 90% at 60℃, rated voltage, and continuously run in a free air state)
PDF Catalog
Applications
Medical equipment, electrical measuring instruments, PV inverters, industrial inverters, LCDs, and arcade amusement machines
Release Date
January 12, 2017
Price
Open
Safety Precautions
Safety Precautions [PDF:228KB]
*The information stated in this release is current as of January 12, 2017
.
