SANYO DENKI Releases
Bracket-mounted Centrifugal Fans
Sizes 270 × 270 × 99 mm and 270 × 270 × 119 mm
August 17, 2016
SANYO DENKI has developed and launched our new line of Bracket-mounted Centrifugal Fans in two sizes: 270 × 270 × 99 mm San Ace C270 9B1TP type and 270 × 270 × 119 mm San Ace C270 9B1TS type. Both models have an air inlet integrated into the unit.
These are suitable for use in air purifiers, industrial ventilators, industrial air conditioners, inverters, networking/telecom equipment, and heat exchangers.
They also have PWM control function as standard that enables external control of the fan rotational speed.
Features
1. Maximizes Strengths of the Centrifugal Fan
To maximize fan performance, an air inlet needs to be precisely mounted to the fan.
Bracket-mounted centrifugal fans have an air inlet and a mounting bracket integrated into one unit. The precise assembly at our factory ensures optimized balance, helping the fan perform at its maximum potential.
2. Easy Installation
Our centrifugal fans come equipped with an air inlet and a mounting bracket, making your installation work easy.
Lineup

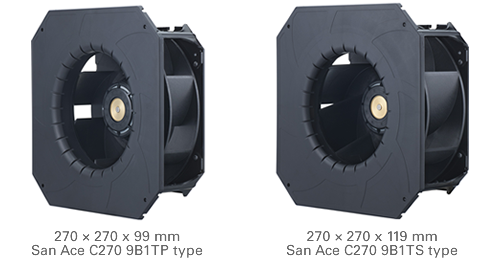

San Ace C270 9B1TP type Size: 270 × 270 × 99 mm
San Ace C270 9B1TS type Size: 270 × 270 × 119 mm
Specifications
1, Size: 270 × 270 × 99 mm Mass: Approx. 1,700 g
Model no. | Rated voltage | Operating voltage range | Rated input | Rated speed | Max. airflow | Max. static pressure | Sound pressure level | ||
---|---|---|---|---|---|---|---|---|---|
[V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
9B1TP24P0H001 | 24 | 16 to 36 | 76.8 | 3,050 | 17.6 | 622 | 530 | 2.13 | 71 |
9B1TP48P0G001 | 48 | 36 to 72 | 132 | 3,650 | 21.0 | 742 | 760 | 3.05 | 74 |
9B1TP48P0H001 | 48 | 36 to 72 | 76.8 | 3,050 | 17.6 | 622 | 530 | 2.13 | 71 |
Expected service life: 40,000 hours (Survival rate L10: 90 % at 60℃, rated voltage, and continuous run in free air state)
2, Size: 270 × 270 × 119 mm Mass: Approx. 1,920 g
Model no. | Rated voltage | Operating voltage range | Rated input | Rated speed | Max. airflow | Max. static pressure | Sound pressure level | ||
---|---|---|---|---|---|---|---|---|---|
[V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
9B1TS48P0G001 | 48 | 36 to 72 | 175.2 | 3,550 | 28.1 | 992 | 861 | 3.46 | 74.5 |
9B1TS48P0H001 | 48 | 36 to 72 | 99.8 | 2,900 | 22.7 | 802 | 590 | 2.37 | 70.5 |
Expected service life: 40,000 hours (Survival rate L10: 90 % at 60℃, rated voltage, and continuous run in free air state)
PDF Catalog
San Ace C270 270 × 270 × 99 mm
San Ace C270 270 × 270 × 119 mm
Applications
Air purifiers, industrial ventilators, industrial air conditioners, inverters, networking/telecom equipment, and heat exchangers
Release Date
August 17, 2016
Price
Open
Safety Precautions
Safety Precautions [PDF:228KB]
*The information stated in this release is current as of August 17, 2016
.
“ San Ace ” is a trademark of SANYO DENKI CO., LTD.
