SANYO DENKI Releases Four Oil Proof Fan Models
With industry’s highest airflow and static pressure
May 30, 2019
SANYO DENKI CO., LTD. has developed and released four Oil Proof Fan models. These fans feature the highest airflow and static pressure in the industry.(1)
They can be used worry-free, even in environments with oil mist (such as where cutting fluids are dispersed in the air).

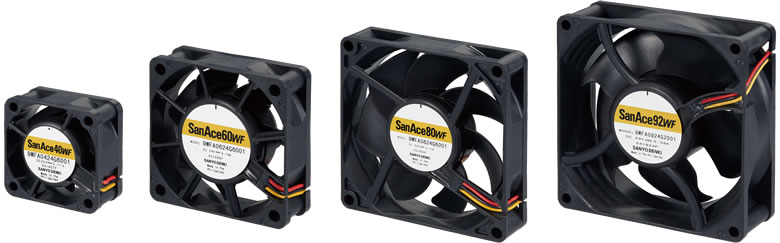

Lineup
40 × 40 × 20 mm "San Ace 40WF" 9WFA type
60 × 60 × 20 mm "San Ace 60WF" 9WFA type
80 × 80 × 20 mm "San Ace 80WF" 9WFA type
92 × 92 × 32 mm "San Ace 92WF" 9WFA type
Features
1. High Airflow and High Static Pressure
This fan delivers a maximum airflow of 0.31 m3/min and a maximum static pressure of 170 Pa.(2)
The maximum airflow has increased by 19% and maximum static pressure has increased by 89% compared with our current model.(3)
2. Oil-proof
The windings and electronic components are structurally protected by materials with excellent oil-resistance, and stable operation is maintained even in harsh oil mist environments.
(1) Based on our own research as of May 30, 2019, conducted among equally-sized oil proof fans on the market
(2) For 40 × 40 × 20 mm "San Ace 40WF" 9WFA Type (model no.: 9WFA0424G6001).
(3) Our conventional product is 40 × 40 × 20 mm "San Ace 40WF" 9WF type (model no.: 9WF0424H601).
Specifications
Dimensions: 40 × 40 × 20 mm, mass: 45 g
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed | Max. airflow | Max. static pressure |
Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9WFA0424G6001 | 24 | 20.4 to 27.6 | 2.6 | 17000 | 0.31 | 10.9 | 170 | 0.68 | 48 |
Expected life: 40000 hours (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)
Dimensions: 60 × 60 × 20 mm, mass: 85 g
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed | Max. airflow | Max. static pressure |
Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9WFA0624G6001 | 24 | 15 to 27.6 | 3.8 | 7700 | 0.79 | 27.9 | 158 | 0.63 | 48 |
Expected life: 40000 hours (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)
Dimensions: 80 × 80 × 20 mm, mass: 105 g
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed | Max. airflow | Max. static pressure |
Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9WFA0824G6001 | 24 | 15 to 27.6 | 3.6 | 6000 | 1.44 | 50.8 | 105 | 0.42 | 48 |
Expected life: 40000 hours (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)
Dimensions: 92 × 92 × 32 mm, mass: 205 g
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed | Max. airflow | Max. static pressure |
Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9WFA0924G2001 | 24 | 12 to 27.6 | 13.9 | 9600 | 3.1 | 109.5 | 380 | 1.53 | 63 |
Expected life: 40000 hours (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)
PDF Catalog
40 × 40 × 20 mm ｢San Ace 40WF｣ 9WFA type
60 × 60 × 20 mm ｢San Ace 60WF｣ 9WFA type
80 × 80 × 20 mm ｢San Ace 80WF｣ 9WFA type
92 × 92 × 32 mm ｢San Ace 92WF｣ 9WFA type
Applications
Machine tools, control panels, inverters, industrial equipment
Release Date
May 30, 2019
Projected Sales Figures
42,000 units/month
Price
Open
Safety Precautions
Safety Precautions [PDF:228KB]
Note: The information stated in this release is current as of May 30, 2019.
“ San Ace ” is a trademark of SANYO DENKI CO., LTD.
