SANYO DENKI Releases the G Proof Fan with High G-Force Tolerance
120 × 120 × 38 mm and Ø172 × 150 × 51 mm sizes for the first time in the industry
August 25, 2017

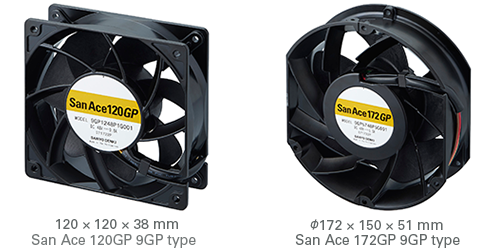

SANYO DENKI CO., LTD. has developed and launched the G Proof Fan series designed to withstand high levels of G-force. These G Proof Fans are the first in the industry* to be available in these sizes as the San Ace 120GP 9GP type and San Ace 172GP 9GP type.
These fans are suitable for cooling CT scanners and other devices subject to high G-force or vibration.
These fans also come standardly equipped with the PWM control function to externally control the rotational speed of the fan.
Features
1. Highly Resistant to G-Forces
These fans can withstand G-forces of 75 G for 1000 hours.**
2. Low Noise and High Energy Efficiency
The PWM control function enables the external control of fan speed, contributing to lower noise and higher energy efficiency of devices.
* Based on our own research as of August 25, 2017, among equally sized axial DC cooling fans in the market.
** Measured with our G-force testing machine. G = Acceleration of gravity = 9.8 m/s2
Usage image
Specifications
Size: 120 × 120 × 38 mm Mass: Approx. 440 g
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed | Max. airflow | Max. static pressure |
Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9GP1224P1G001 | 24 | 15 to 30 | 38.4 | 6550 | 7.0 | 247 | 370 | 1.48 | 62 |
| 9GP1248P1G001 | 48 | 36 to 60 | 38.4 | 6550 | 7.0 | 247 | 370 | 1.48 | 62 |
G-force tolerance: 75 G for 1000 hours (Measured with our G-force testing machine)
Expected life: 40000 hours (L10: Survival rate: 90% at 60ºC, rated voltage, and continuously run in a free air state)
Size: Ø172 × 150 × 51 mm Mass: Approx. 880 g
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed | Max. airflow | Max. static pressure |
Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9GP5724P5H001 | 24 | 16 to 30 | 120 | 8000 | 12.3 | 434 | 1000 | 4.02 | 77 |
| 9GP5748P5G001 | 48 | 36 to 72 | 240 | 10500 | 16.1 | 568 | 1600 | 6.43 | 83 |
G-force tolerance: 75 G for 1000 hours (Measured with our G-force testing machine)
Expected life: 40000 hours (L10: Survival rate: 90% at 60ºC, rated voltage, and continuously run in a free air state)
PDF Catalog
San Ace 120GP 120 × 120 × 38 mm
San Ace 172GP Ø172 × 150 × 51 mm
Applications
CT scanners and other devices that are required to operate in environments with high G-force or vibration
Release Date
August 25, 2017
Projected Sales Figures
120 × 120 × 38 mm
Initial fiscal year: 1,000 units per month, second fiscal year: 3,000 units per month
Ø172 × 150 × 51 mm
Initial fiscal year: 1,500 units per month, second fiscal year: 4,000 units per month
Price
Open
Safety Precautions
Safety Precautions [PDF:228KB]
*The information stated in this release is current as of August 25, 2017.
“ San Ace ” is a trademark of SANYO DENKI CO., LTD.
