SANYO DENKI Releases AC-Powered Centrifugal Fans and Splash Proof Centrifugal Fans
Industry’s Highest Airflow and Static Pressure
October 11, 2018

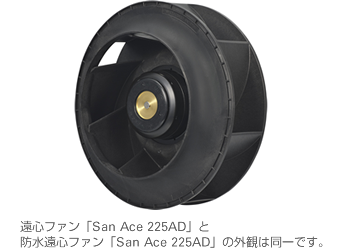

SANYO DENKI CO., LTD. has developed and launched the San Ace 225AD Ø225 × 99 mm Centrifugal Fan and Splash Proof Centrifugal Fan. These fans feature the highest airflow and static pressure in the industry.(1)
They are suitable for ICT equipment cabinets, control boards, heat exchangers, air conditioning systems, dust collectors, fan filter units, and renewable energy inverters.
Features
1. High Airflow and High Static Pressure
These fans deliver a maximum airflow of 23 m3/min and a maximum static pressure of 815 Pa, both of which are leading in the industry.(2)
Compared with the current model,(3) the maximum airflow has increased approximately 3.6 times and maximum static pressure has increased approximately 4 times.
2. No DC Power Supply Needed
With an embedded AC-DC converter, these fans can be driven by an AC power supply.
This eliminates the need for a high-capacity DC power supply, reducing the overall costs.
3. High Energy Efficiency and Low Noise
The PWM control function enables the external control of fan speed, contributing to lowering noise and improving energy efficiency of devices.
4. Water and Dust Resistance
With its IP56 rating,(4) the San Ace 225AD Splash Proof Centrifugal Fan is protected from water and dust. This ensures stable fan operation even in harsh environments.
(1) Based on our own research as of October 11, 2018, among equally-sized waterproof and non-waterproof industrial centrifugal fans on the market.
(2) The values are for San Ace 225AD Centrifugal Fans (model number: 9ADTS11P0G001, 9ADTS23P0G001).
(3) Current model: San Ace 172 Ø172 × 51 mm axial AC fan (model no. 109-314).
(4) The degree of protection (IP code) is defined by IEC 60529 (International Electrotechnical Commission).
IP56:
- Protection against a level of dust that could hinder operation or impair safety
- Protection against powerful water jets
Specifications
San Ace 225AD 9AD type Centrifugal Fan - Dimensions: Ø225 × 99 mm mass: approx. 1800 g
Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed |
Max. airflow | Max. static pressure |
Sound pressure level |
||
---|---|---|---|---|---|---|---|---|---|
[V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
9ADTS11P0G001 | 115 | 90 to 132 | 155 | 3200 | 23.0 | 812 | 815 | 3.27 | 74 |
9ADTS11P0F001 | 70 | 2450 | 17.6 | 621 | 480 | 1.93 | 68 | ||
9ADTS23P0G001 | 230 | 180 to 264 | 155 | 3200 | 23.0 | 812 | 815 | 3.27 | 74 |
9ADTS23P0F001 | 70 | 2450 | 17.6 | 621 | 480 | 1.93 | 68 |
When equipped with our inlet nozzle (model no.: 109-1134)
Expected life: 40000 hours of continuous operation
(L10 life: 90% survival rate for continuous operation in free air at 40°C, rated voltage)
San Ace 225AD 9AD type Splash Proof Centrifugal Fan - Dimensions: Ø225 × 99 mm, mass: approx. 1900 g
Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed |
Max. airflow | Max. static pressure |
Sound pressure level |
||
---|---|---|---|---|---|---|---|---|---|
[V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
9ADW1TS11P0H001 | 115 | 90 to 132 | 140 | 3100 | 22.3 | 787 | 760 | 3.05 | 73 |
9ADW1TS11P0M001 | 61 | 2350 | 16.9 | 597 | 440 | 1.77 | 67 | ||
9ADW1TS23P0H001 | 230 | 180 to 264 | 140 | 3100 | 22.3 | 787 | 760 | 3.05 | 73 |
9ADW1TS23P0M001 | 61 | 2350 | 16.9 | 597 | 440 | 1.77 | 67 |
When equipped with our inlet nozzle (model no.: 109-1134H)
Expected life: 40000 hours of continuous operation
(L10 life: 90% survival rate for continuous operation in indoor free air at 40°C, rated voltage)
PDF Catalog
San Ace 225AD 9AD type Centrifugal Fan
San Ace 225AD 9AD type Splash Proof Centrifugal Fan
Applications
ICT equipment cabinets, control boards, heat exchangers, air conditioning systems, fan filter units, renewable energy inverters, dust collectors, air purifiers, and food processing machines
Release Date
October 11, 2018
Projected Sales Figures
Initial fiscal year: 1,000 units per month, second fiscal year: 2,000 units per month
Price
Open
Safety Precautions
Note: The information stated in this release is current as of October 11, 2018.
